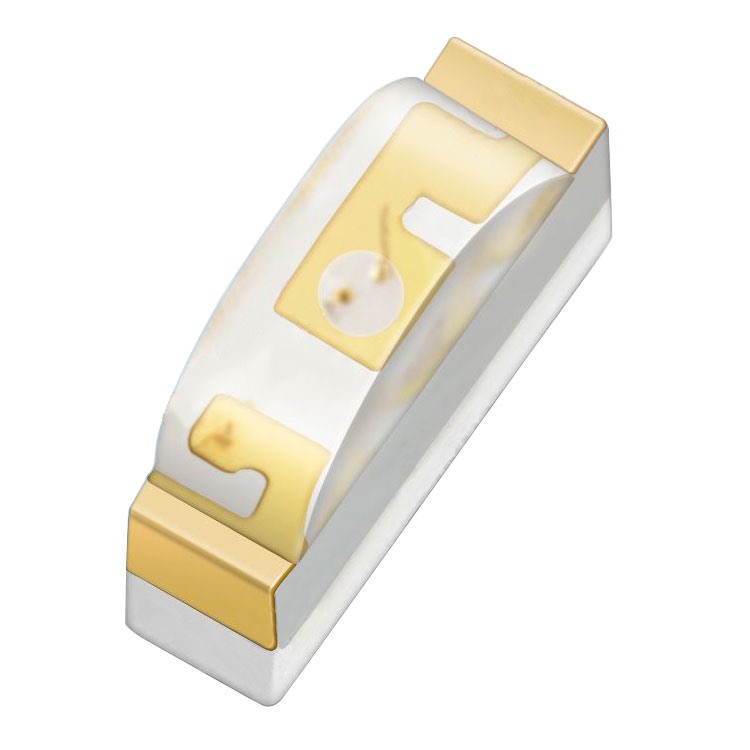

0802 side-emitting double color LED lamp beads

Category：Side Emission

L/W/H: 2.1x0.6x1.0mm WL: R:620-630nm G:520-530nm VF: R:1.8-2.4v G:2.8-3.6v IV: R:125-320mcd G:320-800mcd

售后QQ：
售后QQ：

Hotline：138 0982 8229

Details

FEATURES

1、Low heat,high brightness
2、Average light-decay<2% in 3000 hr
3、Instant lighting up(less than 100 ns)
4、Excellent electrostatic protection and RoSH compliant

APPLICATIONS

1、Indicator,Backlight
2、3C Products(Computer、Communication and Consumer Electronic)
3、AI,Internet of things,Smart wearer

TECHNICAL PARAMETERS

Model	Color	Wavelength （nm）	Forward Voltage @20mA		Brightness（mcd）@20mA		Beam Angle
Model	Color	Wavelength （nm）	Min.	Max.	Min.	Max.	2θ1/2°
FT-0802RVGC2UDA-C		520-530	2.8	3.6	320	800	120
FT-0802RVGC2UDA-C		620-630	1.8	2.4	125	320	120
